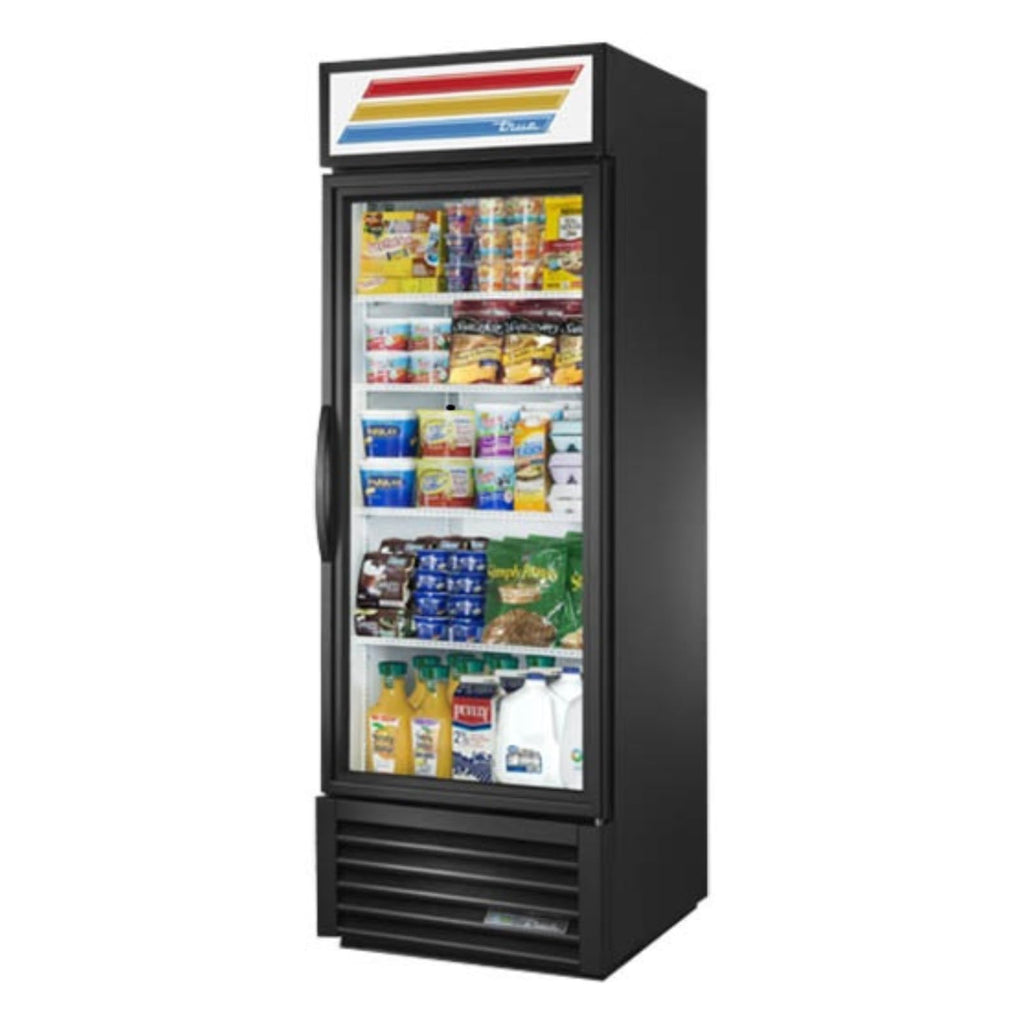

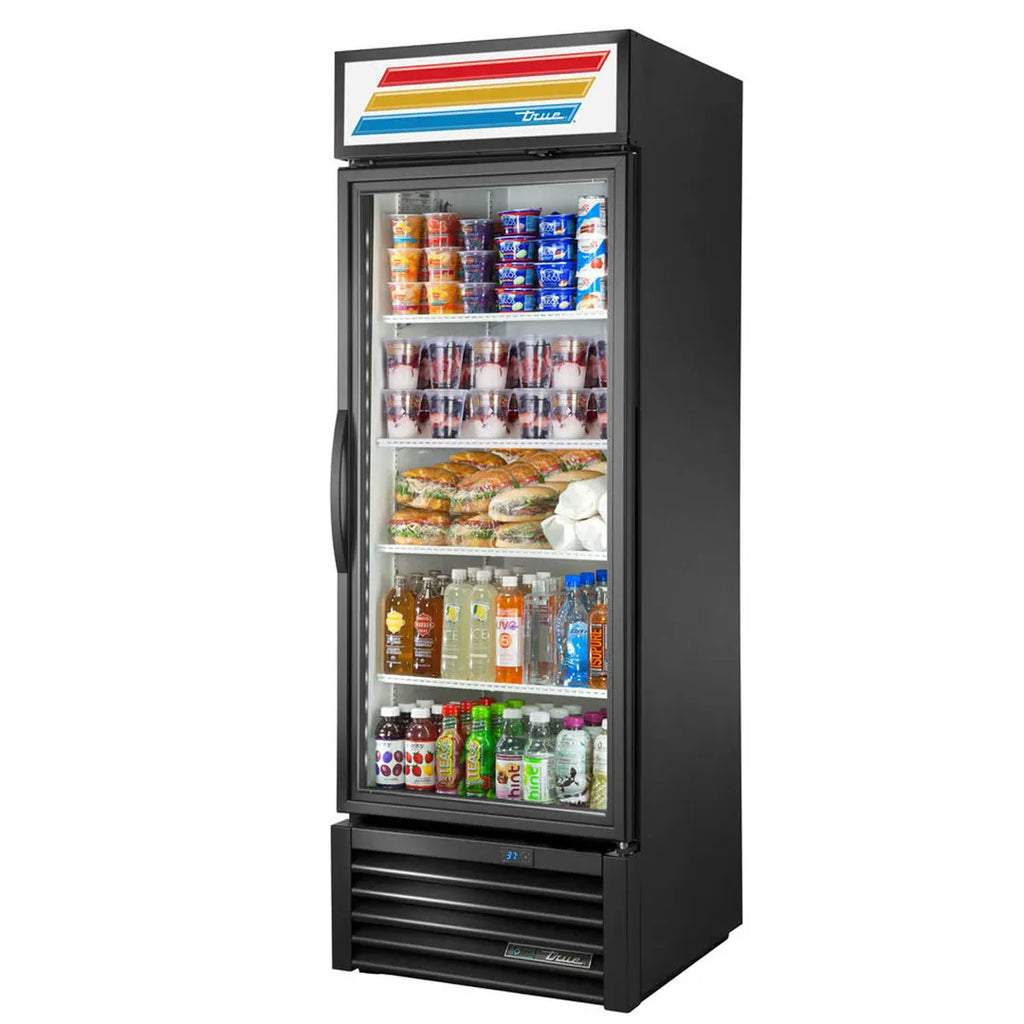

True GDM-23-HC-LD — Single-Door Glass Merchandiser
Request a Quote
Call or email for current pricing, freight, and lead time on the True GDM-23-HC-LD.
✔ Fast pricing ✔ Commercial freight ✔ Manufacturer warranty
support@northpeakrefrigeration.com
Overview
The True GDM-23-HC-LD is a single-section glass-door refrigerated merchandiser built for convenience stores, cafés, and grab-and-go operations that want high-visibility beverage and packaged-food display in a compact 27-inch footprint. It pairs a self-closing Low-E glass door and bright LED lighting with an energy-efficient R290 system holding 33–38°F.
This product is listed as part of NorthPeak Refrigeration's supplier-ready commercial catalog. Final pricing, availability, freight, configuration, accessories, and lead times should be confirmed before order placement.
Applications
- Convenience and grocery stores
- Cafés and coffee shops
- Delis and quick-service concepts
- Hotels and hospitality grab-and-go
- Break rooms and concessions
- Beverage merchandising in tight spaces
Key Features
- Self-closing "Low-E" double-pane thermal glass door with 12" handle and magnetic gasket
- Bright, even LED interior lighting to showcase products
- 23 cu. ft. capacity with four adjustable PVC-coated wire shelves
- Energy-efficient, factory-balanced R290 refrigeration holding 33°F to 38°F
- Bottom-mounted condensing unit with reverse condensing fan and no-stoop lower shelf
- Durable powder-coated steel exterior with white aluminum interior and stainless steel floor
Specifications
| Brand | True |
| Model | GDM-23-HC-LD |
| Type | Glass-door refrigerated merchandiser (one-section) |
| Doors | 1 self-closing glass swing door |
| Capacity | 23 cu. ft. |
| Shelves | 4 adjustable |
| Width | 27" |
| Dimensions (W x D x H) | 27" x 29-7/8" x 78-5/8" |
| Temperature Range | 33°F to 38°F |
| Weight | ~355 lb |
| Voltage | 115V / 60Hz / 1-phase (5.4 A, NEMA 5-15P) |
| Refrigerant | R290 (1/3 HP) |
| Certifications | cULus, UL EPH, NSF/ANSI 7, ENERGY STAR |
| Pricing | Request a quote |
Compatibility
The GDM-23-HC-LD is a self-contained, bottom-mount merchandiser; no remote refrigeration is required. It plugs into a standard 115V/60Hz/1-phase outlet via a NEMA 5-15P plug (approximately 5.4 amps). Allow clearance for airflow; final placement is confirmed at the quote stage.
Freight & Delivery
This unit ships via commercial freight nationwide. Delivery is curbside by default; liftgate, inside delivery, and appointment scheduling can be arranged. Inspect all equipment on arrival and note any visible damage on the delivery receipt before signing. Freight cost and transit time are confirmed with your quote.
Request Pricing
NorthPeak Refrigeration lists all equipment on a request-a-quote basis. Click Request a Quote or email support@northpeakrefrigeration.com for current pricing, availability, freight, and lead time.
