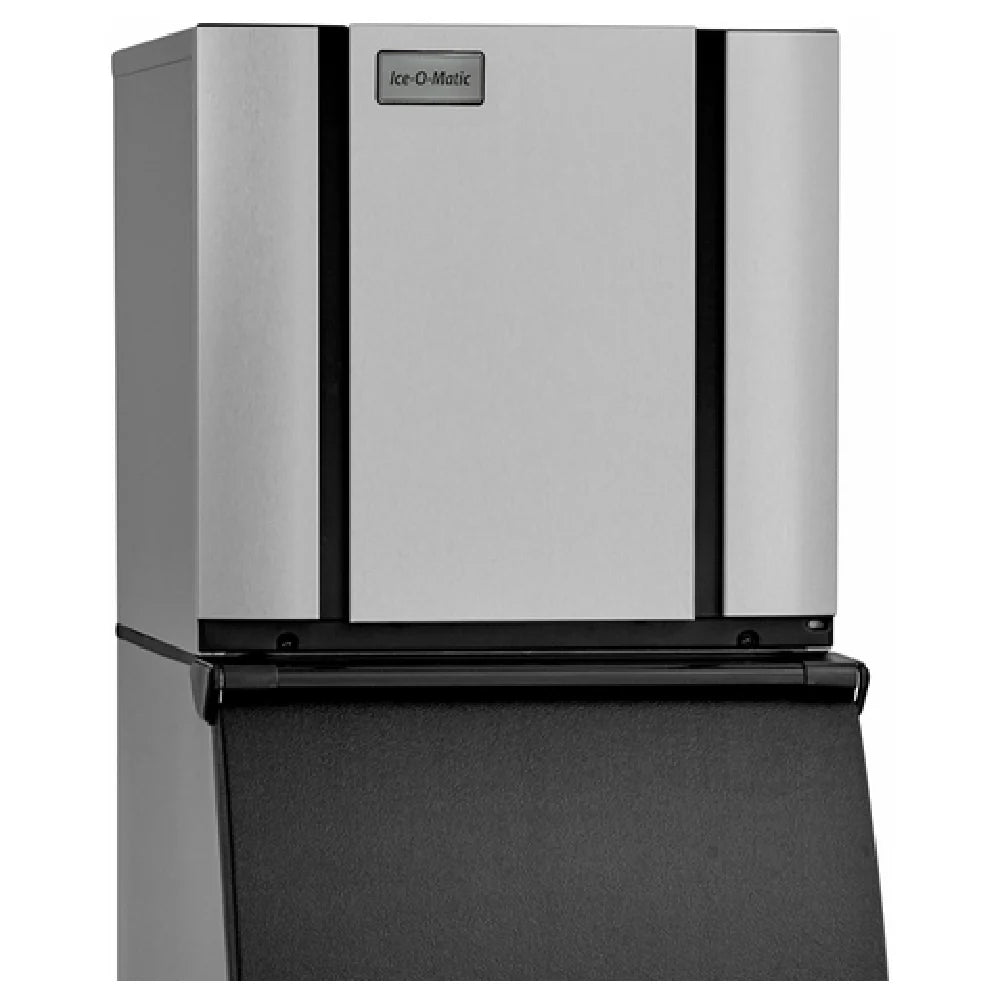

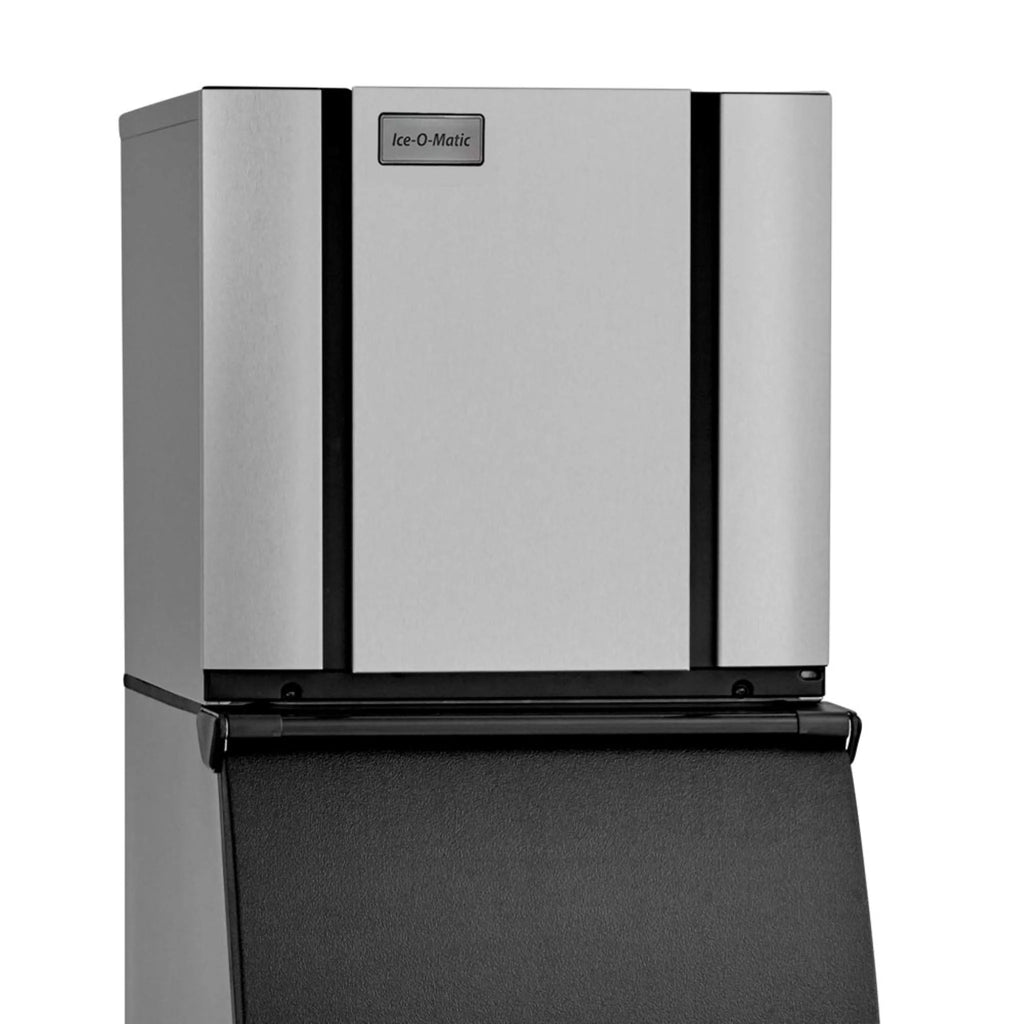

Ice-O-Matic CIM0520HA — Elevation Series Modular Cube Ice Machine
Request a Quote
Call or email for current pricing, freight, and lead time on the Ice-O-Matic CIM0520HA.
✔ Fast pricing ✔ Commercial freight ✔ Manufacturer warranty
support@northpeakrefrigeration.com
Overview
The Ice-O-Matic CIM0520HA is an Elevation Series™ modular cube ice machine that produces half-size cubes for medium-volume foodservice operations. It uses an air-cooled, self-contained condenser with a dual-exhaust (top/side) air-discharge design for flexible installation, plus a Universal Smart Harness™ control board, LED status display, and one-touch sanitize/descale controls. It is a modular head unit and requires a compatible storage bin, sold separately.
This product is listed as part of NorthPeak Refrigeration's supplier-ready commercial catalog. Final pricing, availability, freight, configuration, accessories, and lead times should be confirmed before order placement.
Applications
- Restaurants and bars
- Hotels and hospitality
- Healthcare facilities
- Schools and institutions
- Cafés and convenience stores
- Institutional foodservice
Key Features
- Half-size cube ice (3/8" x 7/8" x 7/8") for versatile beverage and food service
- Production of up to 561 lb per 24 hours (approx. 432 lb AHRI-certified at 90°/70°)
- Air-cooled, self-contained condenser with unique dual-exhaust (top/side) discharge
- Universal Smart Harness™ control board with digital diagnostics
- LED status display with one-touch sanitize and descale controls
- Pure Ice® / Agion® antimicrobial protection with dishwasher-safe, BPA-free food-zone parts
- Modular head unit — pairs with a separately sold storage bin
Specifications
| Brand | Ice-O-Matic |
| Model | CIM0520HA |
| Type | Modular cube ice machine (head unit) |
| Ice Type | Half-size cube |
| Production (24 hr) | Up to 561 lb |
| Width | 22-1/4" |
| Dimensions (W x D x H) | 22-1/4" x 24-1/4" x 21-1/4" |
| Condenser | Air-cooled, self-contained (dual exhaust) |
| Voltage | 115V / 60Hz / 1-phase (17.3 A, hardwired) |
| Certifications | cULus, NSF, CE, ENERGY STAR |
| Storage Bin | Sold separately |
| Pricing | Request a quote |
Compatibility
The CIM0520HA is a 22"-wide modular head designed to sit atop a compatible Ice-O-Matic storage bin (e.g. B55PS) or an approved dispenser. Its dual-exhaust design accommodates top or side air discharge for flexible placement. Installation requires a 115V/60Hz/1-phase supply (approximately 17.3 amps), water inlet, and drain; the unit does not include a cord and must be hardwired by an electrician. Bins and water filtration are ordered separately; final configuration is confirmed at the quote stage.
Freight & Delivery
This unit ships via commercial freight nationwide. Delivery is curbside by default; liftgate, inside delivery, and appointment scheduling can be arranged. Inspect all equipment on arrival and note any visible damage on the delivery receipt before signing. Freight cost and transit time are confirmed with your quote.
Request Pricing
NorthPeak Refrigeration lists all equipment on a request-a-quote basis. Click Request a Quote or email support@northpeakrefrigeration.com for current pricing, availability, freight, and lead time.
