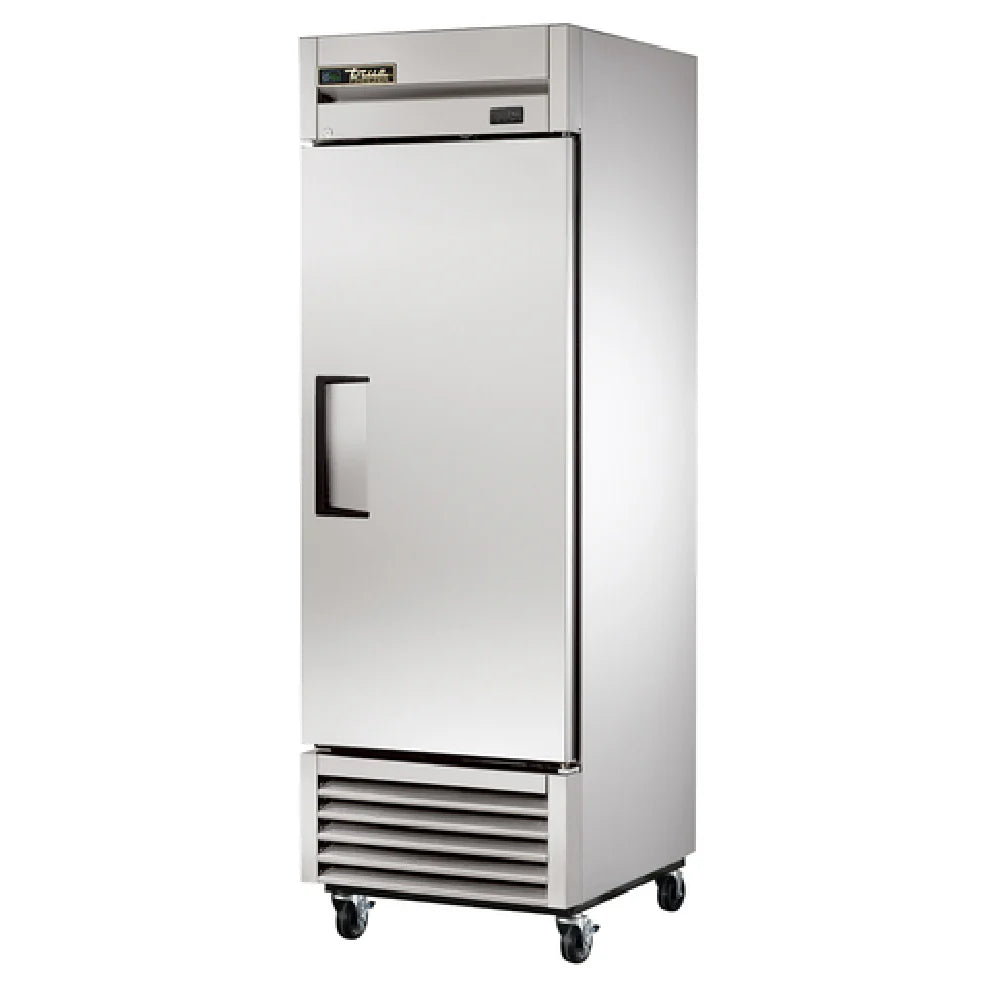

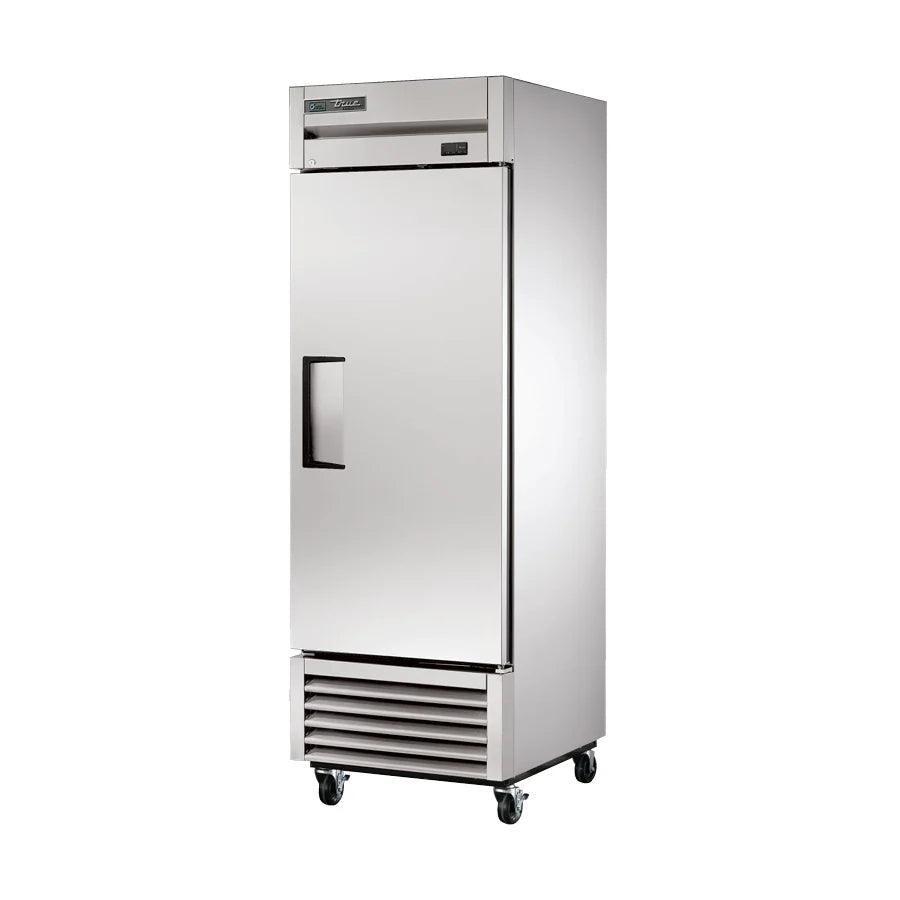

True T-23F-HC — One-Section Reach-In Freezer
Request a Quote
Call or email for current pricing, freight, and lead time on the True T-23F-HC.
✔ Fast pricing ✔ Commercial freight ✔ Manufacturer warranty
support@northpeakrefrigeration.com
Overview
The True T-23F-HC is a one-section solid-door reach-in freezer for kitchens needing dependable frozen storage in a compact 27-inch footprint. Its oversized, factory-balanced R290 system maintains a steady -10°F — cold enough for ice cream and frozen foods — while a bottom-mounted compressor keeps the unit efficient and adds a no-stoop lower shelf. Made in USA.
This product is listed as part of NorthPeak Refrigeration's supplier-ready commercial catalog. Final pricing, availability, freight, configuration, accessories, and lead times should be confirmed before order placement.
Applications
- Restaurants, cafés, and delis
- Bakeries and ice cream shops
- Smaller commercial kitchens
- Bars and prep stations
- Hotels and hospitality
- Back-of-house frozen storage
Key Features
- Single solid, self-closing door with lock and lifetime-guaranteed hinges
- 23 cu. ft. capacity with three adjustable PVC-coated wire shelves
- Oversized, factory-balanced R290 refrigeration maintaining -10°F for frozen foods and ice cream
- Bottom-mounted condensing unit for efficiency, easy service, and a no-stoop lower shelf
- Time-initiated, temperature-terminated automatic defrost with self-cleaning reverse condenser fan
- Stainless steel front and door with clear-coated aluminum interior, stainless floor, and LED lighting
Specifications
| Brand | True |
| Model | T-23F-HC |
| Type | Reach-in freezer (one-section) |
| Doors | 1 solid self-closing door with lock |
| Capacity | 23 cu. ft. |
| Shelves | 3 adjustable |
| Width | 27" |
| Dimensions (W x D x H) | 27" x 29-1/2" x 83-3/8" (with casters) |
| Temperature | -10°F |
| Voltage | 115V / 60Hz / 1-phase (3.7 A, NEMA 5-15P) |
| Refrigerant | R290 (1/2 HP) |
| Certifications | cULus, UL EPH, ENERGY STAR (Made in USA) |
| Pricing | Request a quote |
Compatibility
The T-23F-HC is a self-contained, bottom-mount reach-in freezer on casters; no remote refrigeration is required. It plugs into a dedicated 115V/60Hz/1-phase, 15-amp outlet via a NEMA 5-15P plug (approximately 3.7 amps). Allow clearance for airflow; final placement is confirmed at the quote stage.
Freight & Delivery
This unit ships via commercial freight nationwide. Delivery is curbside by default; liftgate, inside delivery, and appointment scheduling can be arranged. Inspect all equipment on arrival and note any visible damage on the delivery receipt before signing. Freight cost and transit time are confirmed with your quote.
Request Pricing
NorthPeak Refrigeration lists all equipment on a request-a-quote basis. Click Request a Quote or email support@northpeakrefrigeration.com for current pricing, availability, freight, and lead time.
